How to use an external water source?
The xBloom Studio features an internal pump, allowing you to choose between using the included water tank or connecting to an external water source with 1/4" OD tubing. For non-pressurized sources like a 5-gallon jug, simply attach the tube (up to 19 inches long) directly to the machine. For integration into a pressurized system from your home or filter system, we recommend purchasing our Water Inline Pressure Regulator accessory to ensure safe and seamless plumbing.
Whether from the built-in water tank or directly hooked to your water system with an external pipe, enjoy the flexibility to use it whenever and however you prefer.
User Guide
-
non-pressurized water source, you can directly insert a water purification pipe (1/4" OD tubing, within 19 inches long) into the machine.
-
Pressurized water source, it is recommended that you click here to purchase a pressure feed fitting from the brand's website to ensure safe and seamless plumbing.
Installation Steps
-

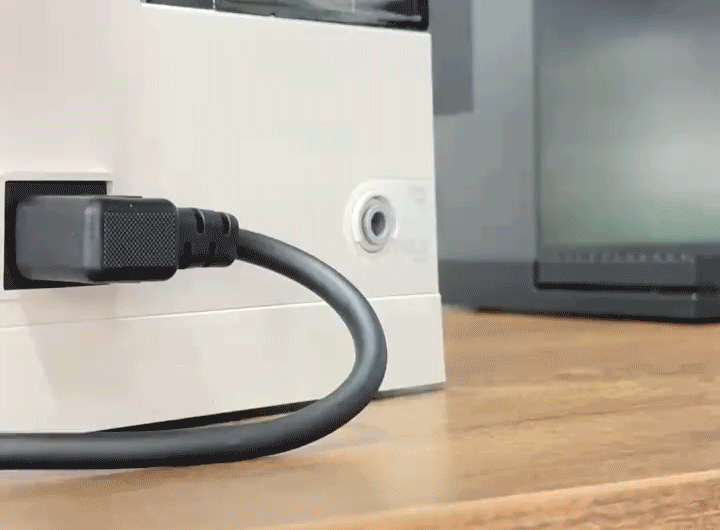

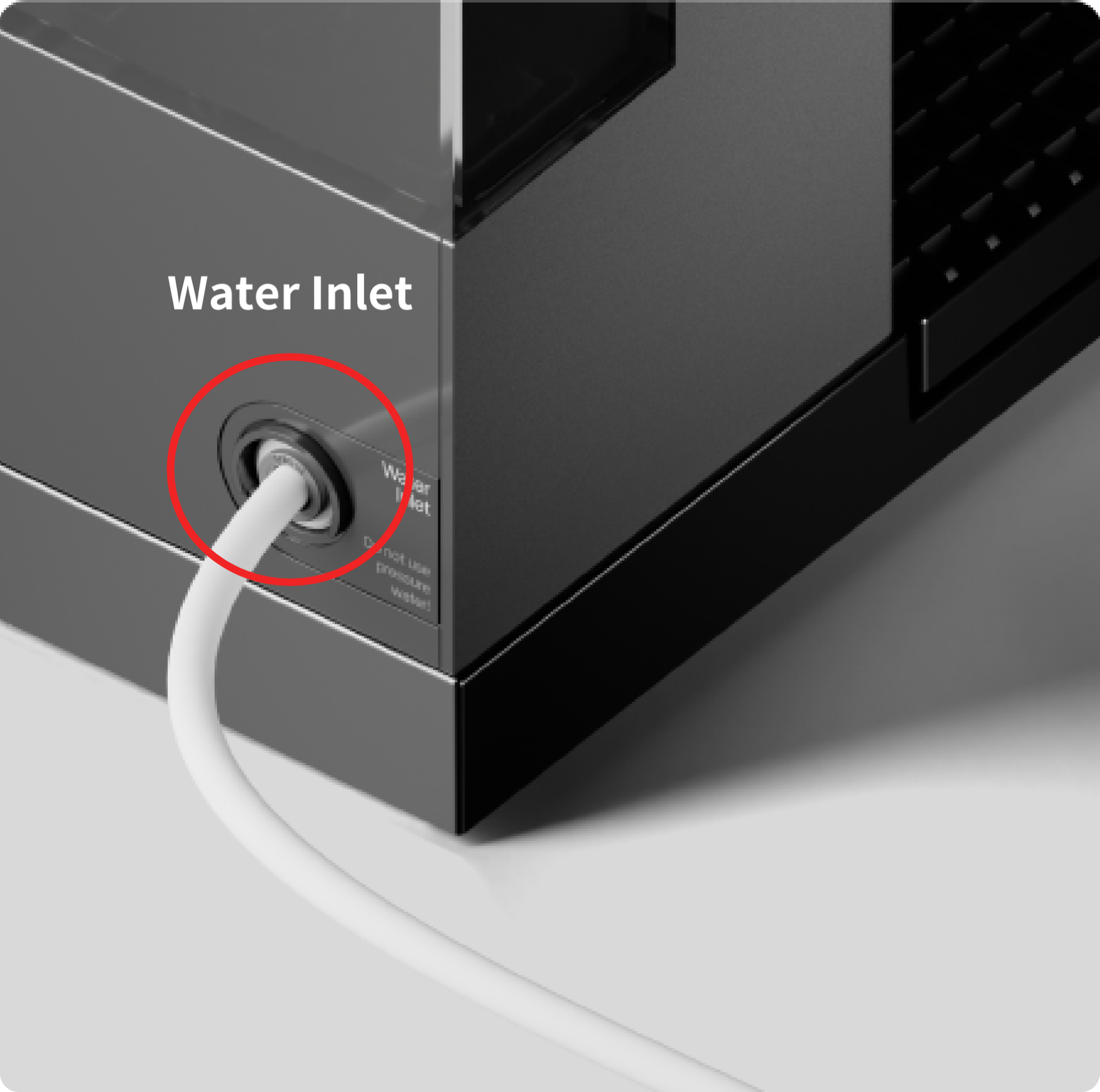

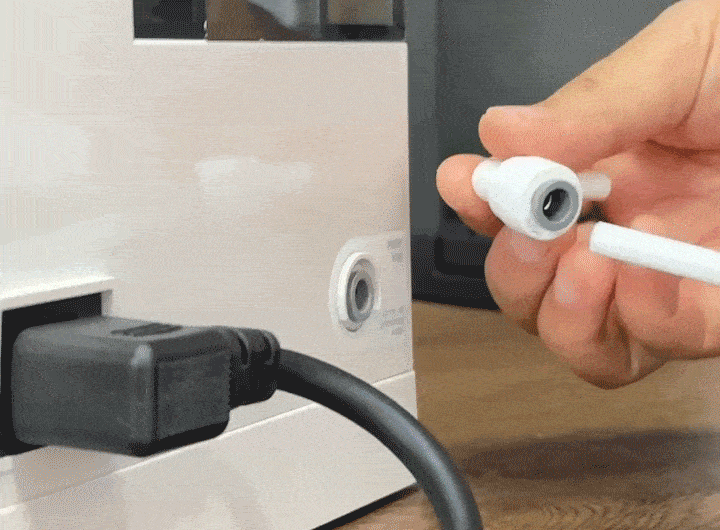

Connect the water pipe:Insert the water pipe into the water inlet connector at the bottom of the coffee machine and connect it securely, and connect the other end to a non-pressurized water source.
-
Change Water Intake Unit: Press and hold the right knob for 3 seconds on the machine's main interface to switch the water intake method (tap).

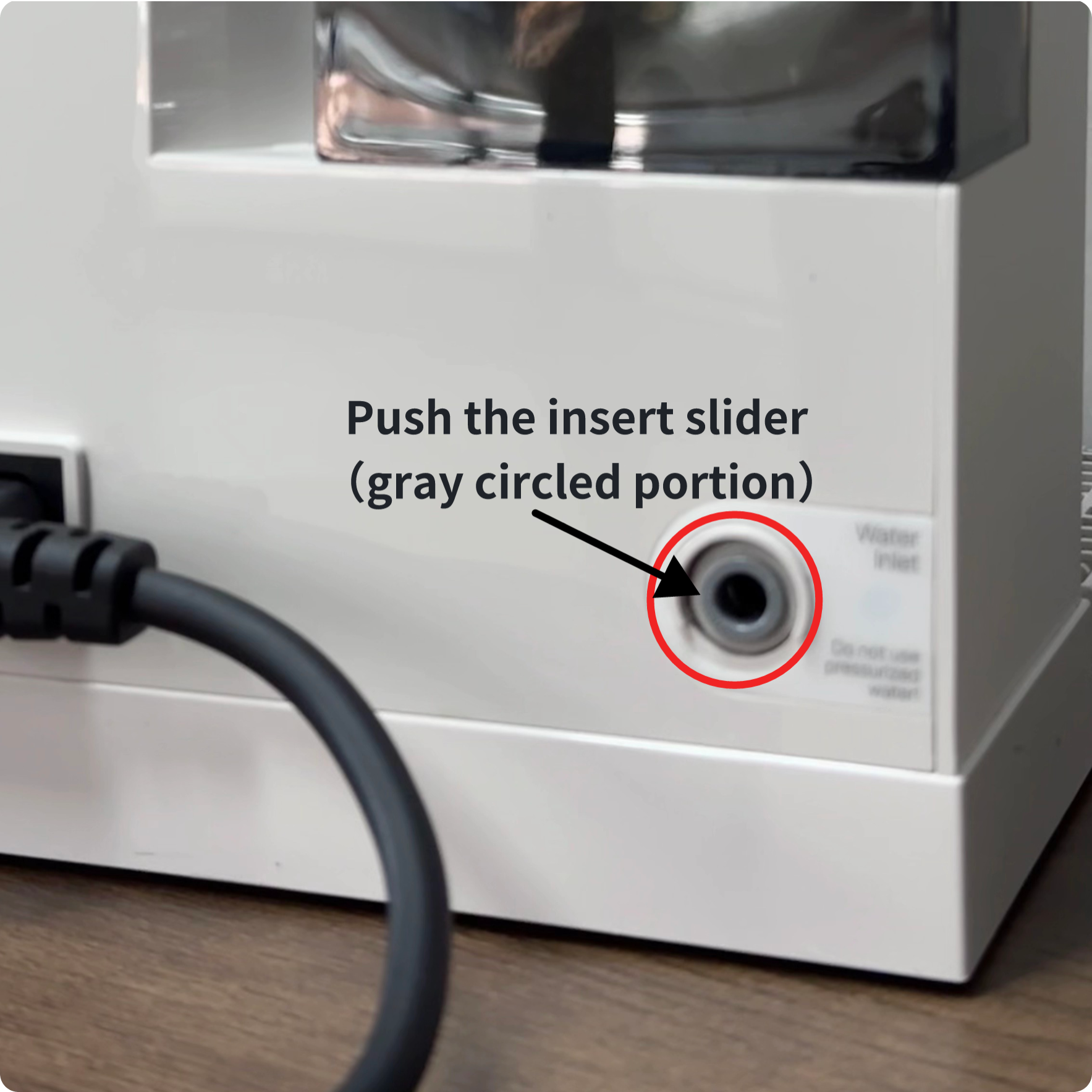

⚠Please note that when inserting the water pipe into the water inlet, insert it firmly, otherwise it will easily cause water leakage; when you need to pull out the water pipe, push the plug-in slider to pull it out.
-
Place the water source below the level of the machine. Please try to dispense water. If all functions normally, you can now start brewing!
-
Remove the water pipe and water pipe connector when the device is not in use.
Precautions
-
Water pipe specifications: Please use a clean water pipe with 1/4" OD tubing and within 19 inches long.
-
Regular Inspection: Regularly check the water inlet and connecting pipes to ensure there are no leaks or damages, maintaining the equipment in good working condition.
-
Follow Guidelines: Adhere to all applicable safety procedures during installation or maintenance. Turn off all power sources and relieve system pressure before installing/removing equipment.
-
Cleaning and Maintenance: Regularly clean the water inlet accessories and water pipes to prevent the accumulation of scale and impurities.
💡Tips:
-
Press and hold the right knob for 3 seconds on the machine's main interface to enter the setting mode and switch the water intake method.
-
Please make sure of the correct water pipe specifications and fittings for your machine.
-
If you have any questions or need assistance, please contact support@xbloom.com or an authorized seller.
