1. Must Read Before Use
-
This product is a professional-grade automatic coffee machine, intended solely for grinding and brewing coffee beans. Please do not pour any other liquids or solid substances into the grinder to prevent equipment damage or personal injury.
-
This product can be supplied water either via plumbing or by filling the tank manually. If opting for a pressure water purifier connection, please purchase the necessary pressure water accessories from the official website and ensure they are installed correctly. If connected to a non-pressurized water source, simply insert the water pipe (1/4" OD and 1/8“ ID, less than 500mm) into the machine.
-
Place the coffee machine in a safe environment away from fire sources to mitigate the risk of fire.
-
When the coffee machine is not in use for extended periods, you can slide the bean hopper lid to the left to close it and prevent dust from entering the grinder.
-
If the coffee machine is damaged, falls, or operates abnormally, immediately stop using it, disconnect the power, and contact xBloom or an authorized seller for inspection and repair.
-
Please do not use the machine if it is damaged, to prevent electric shock, burns, or severe accidents such as fires.
-
Before moving the coffee machine, always remove the cup tray and use the drainage function to expel any remaining water inside the machine.
-
Do not place fingers or other objects at the coffee outlet to prevent burns.
-
Do not place fingers or other objects in the grinding components to avoid injury.
-
Only room-temperature purified water should be added to the water tank; it is strictly forbidden to fill the tank with hot water or other beverages.
-
When the coffee machine is not in use for a long time, please empty the water tank to prevent the growth of scale and bacteria. It is recommended to change the water in the tank regularly to maintain water quality.
-
When cleaning the coffee machine, only use mild detergents and clean cleaning tools; avoid using strong acids, strong alkalis, or other harmful chemicals.
-
This machine is designed for use with xBloom-approved products and accessories only; using unofficial accessories may cause damage or performance degradation.
-
All xBloom devices undergo strict quality inspections, reliability testing may result in slight usage marks that do not affect the normal operation of the equipment.
-
Operating or storage temperatures should be maintained between 5°C/41°F and 38°C/100°F to ensure normal functioning of the device.
-
Do not use the device for any unintended purposes to avoid damage or safety incidents.
-
xBloom reserves the right to modify the instructions without prior notice; users should regularly visit the official website to obtain the latest information.
-
Although detailed instructions are provided, users are still responsible for their own safety and the proper use of the equipment. The manufacturer is not liable for any losses caused by the user’s failure to adhere to the instructions or improper use of the device.
-
If you have any questions or need assistance, please contact xBloom or an authorized seller.
⚠️Caution: To prevent burns, do not touch the brewer's water spout, nor should you place your hands or face near the spout.

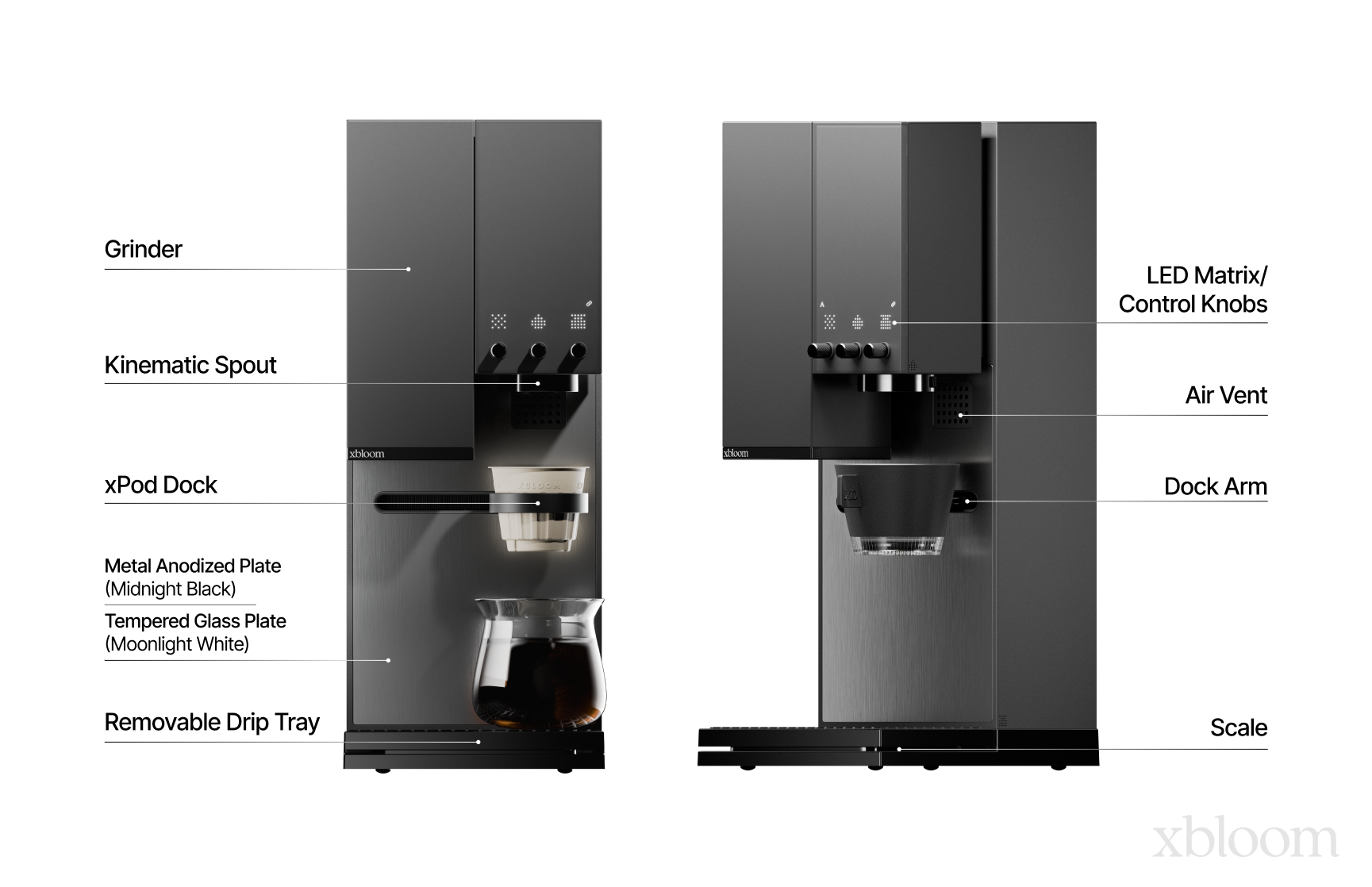

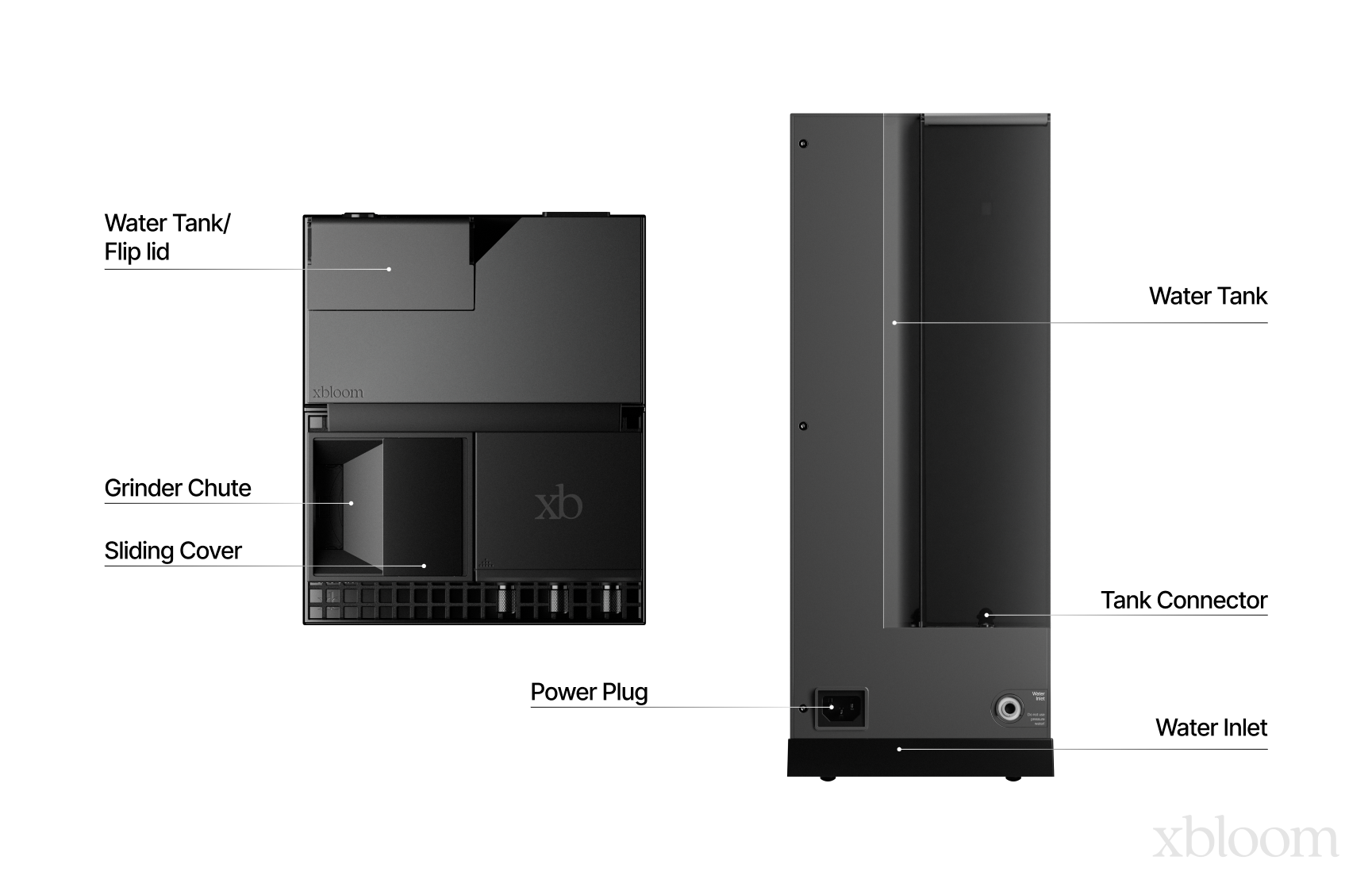

1.1 Machine Overview
The schematic diagrams of the machine are as follows:

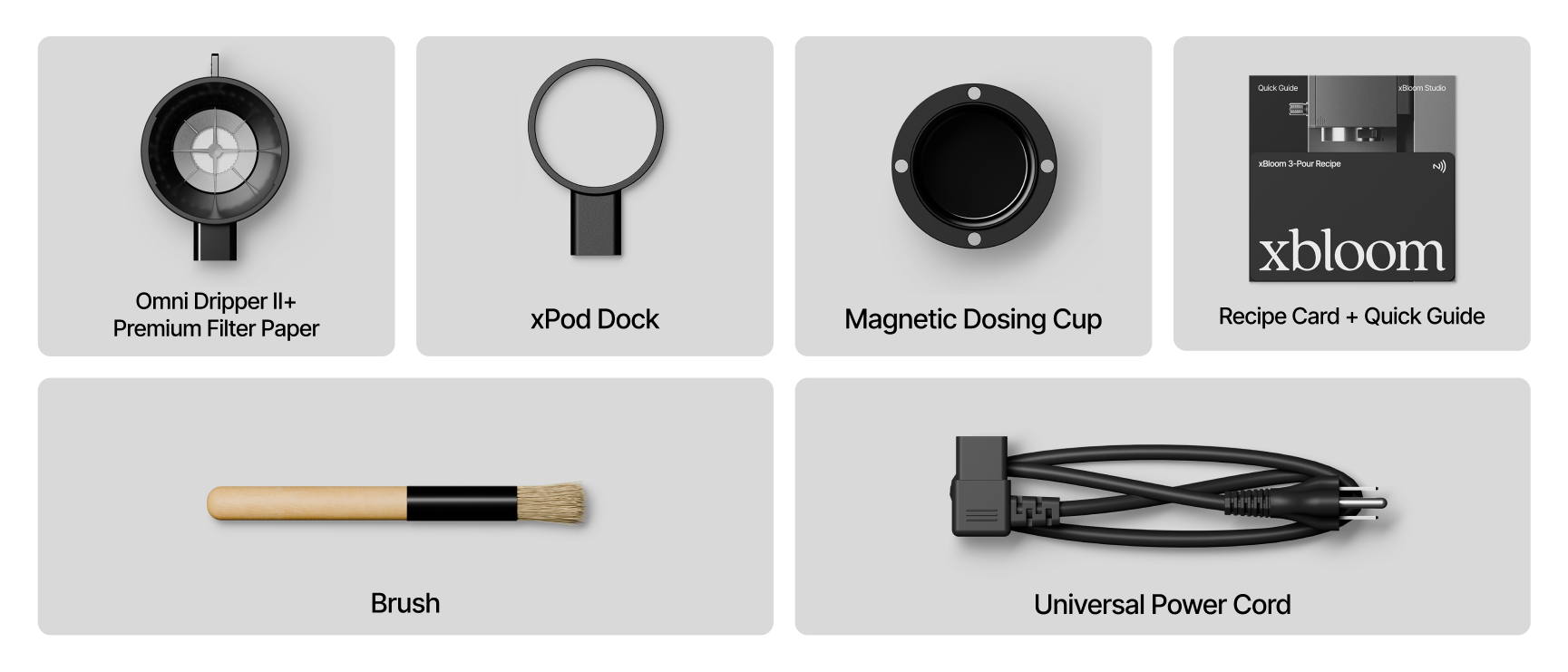

1.2 Accessories
-
NFC Recipe Card
-
xPod Dock
-
Machine Cleaning Brush
-
Magnetic Dosing Cup
-
Omni Dripper 2
-
xBloom Premium Filter Paper (10 sheets)
- Universal Power Cord
-
Quick Start Guide

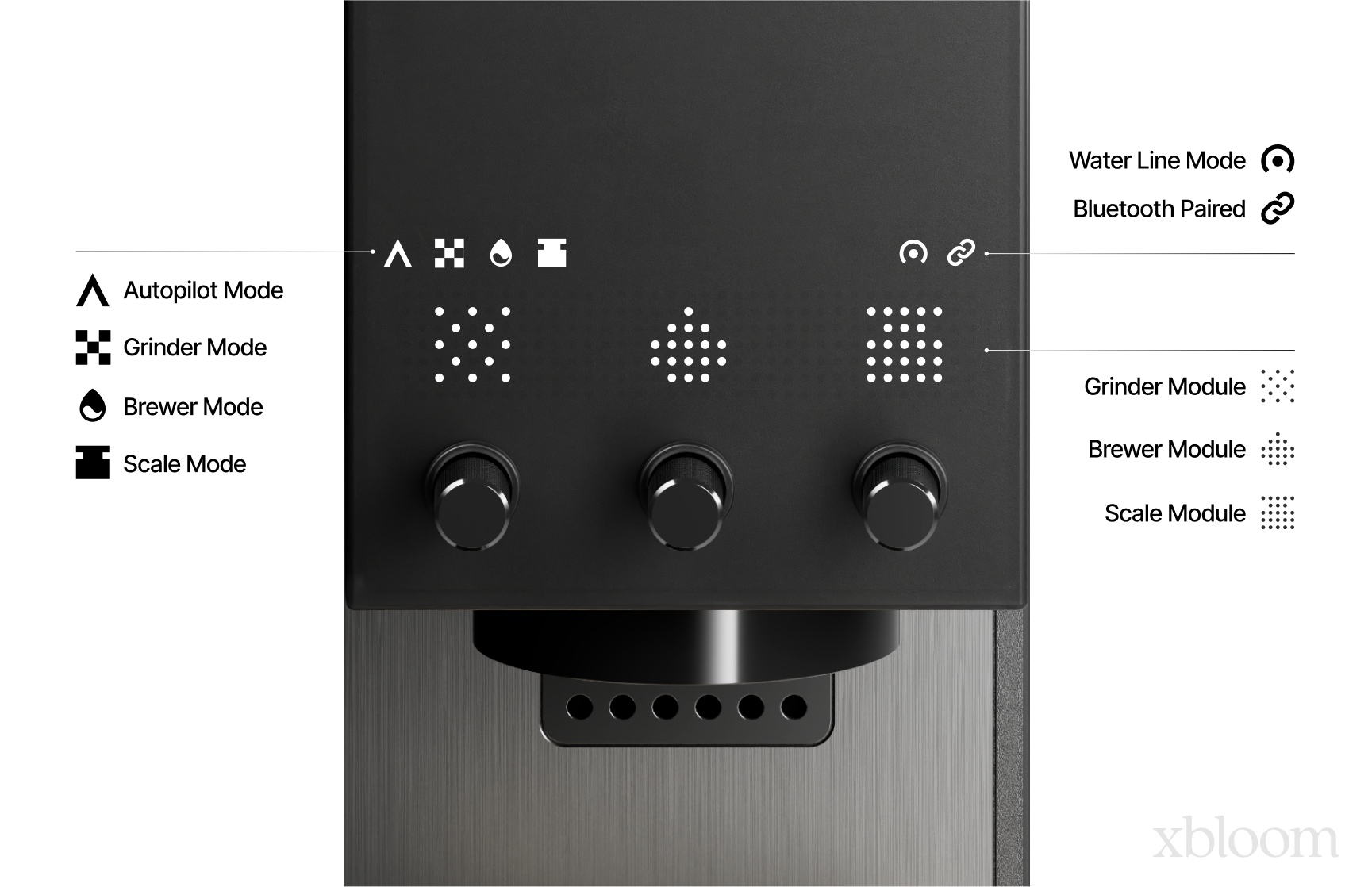

1.3 Display Features
The xBloom Studio combines technology and craftsmanship with its intelligent LED display matrix and tactile control knobs, aiming to provide you with an unparalleled specialty coffee experience.
The main display panel icons from left to right represent the grinder, brewer, and scale module. Below each, the corresponding knobs allow for adjustments to these specific functions.
-
Press the left-side knob to access the grinder module for adjustments to grind size, rotational speed, etc.
-
Press the middle knob to access the brewer module for adjustments to water temperature, pour style, etc.
-
Press the right-side knob to access the scale module for tare, weighing, etc.
💡Tip: The machine can maintain Bluetooth connectivity even in standby or sleep mode.
In the main interface, the machine is in awake standby mode. After 5 minutes of inactivity, ♥ heart icon appears, indicating sleep preparation. If there is no further activity for another 5 minutes, the screen turns off, and the machine enters sleep mode.
1.4 Technical Specifications
Dimension | L170xW204xH426 mm | L6.7xW8xH16.8" in |
Net Weight | 5.1kg | 11.3 lb |
Materials | BPA-free food-grade plastic, stainless steel (SUS304), aluminum alloy, and food-grade silicone. |
Cords Length | 1000mm±50mm | 39in±2in |
Voltage | US:120V~ | 60Hz| 1400W EU/AR/CN: 220V-240V~| 50Hz/60Hz | 1200W |
Temperature at Heater | 40-100℃ | 104 - 212°F |
Temperature at Spout | 40-98℃ | 104 - 208°F | RT Room Temperature |
Water Tank Capacity | 946 ml | 32 oz |
Dosing Cup Capacity | 30g | 1oz | Suitable for 58mm portafilters |
Omni Dripper 2 Capacity | Recommended coffee ground capacity: 5-18g Maximum liquid capacity: 160ml | 5.41oz |
Grind Size | 1-80 |
Grinder Rotational Speed | 60-120RPM(default at 120RPM) |
Grinder Step | 18.75µm (microns) per step |
Grinder Burr | 48mm |
Scale Capacity | within 2kg |
Scale Readability | 0.1g within 1kg | 1g between 1-2kg |
Bluetooth Version | Bluetooth 5.0 or below |
1.5 Setting up for the first time

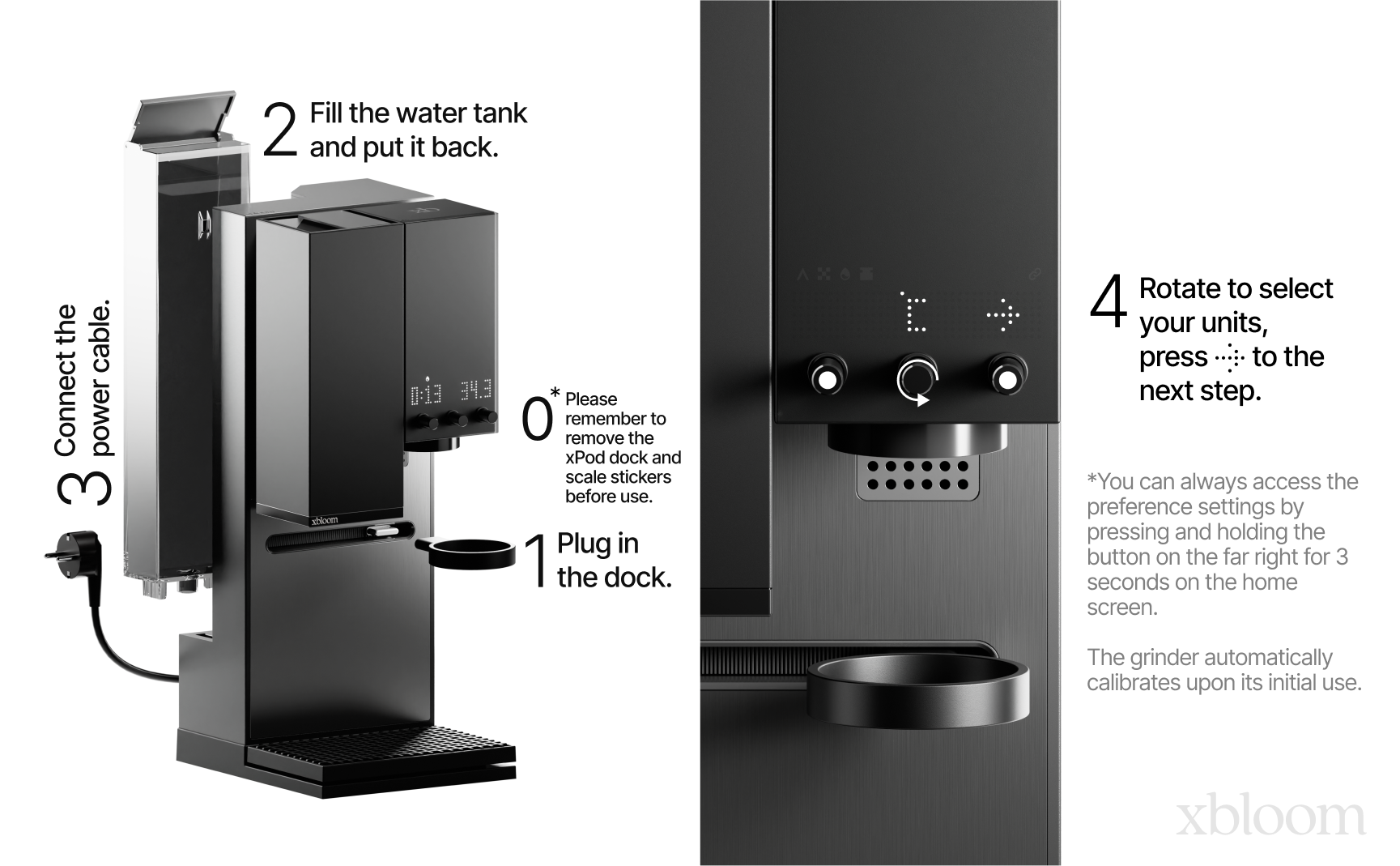

1.5.1 First Time Set Up
-
Plug in the dock onto the dock arm
-
Fill the water tank with an appropriate amount of water or connect it to a water line
-
Connect the power cable and plug it in. The machine will turn on automatically
-
Adjust settings by rotating the central button; for more information, please visit the section "Settings"
💡Tip: You can access Settings mode at any time by pressing and holding the right-side knob on the machine's main interface for three seconds. For more details, please refer to "Settings." Upon first use, the machine will automatically calibrate.

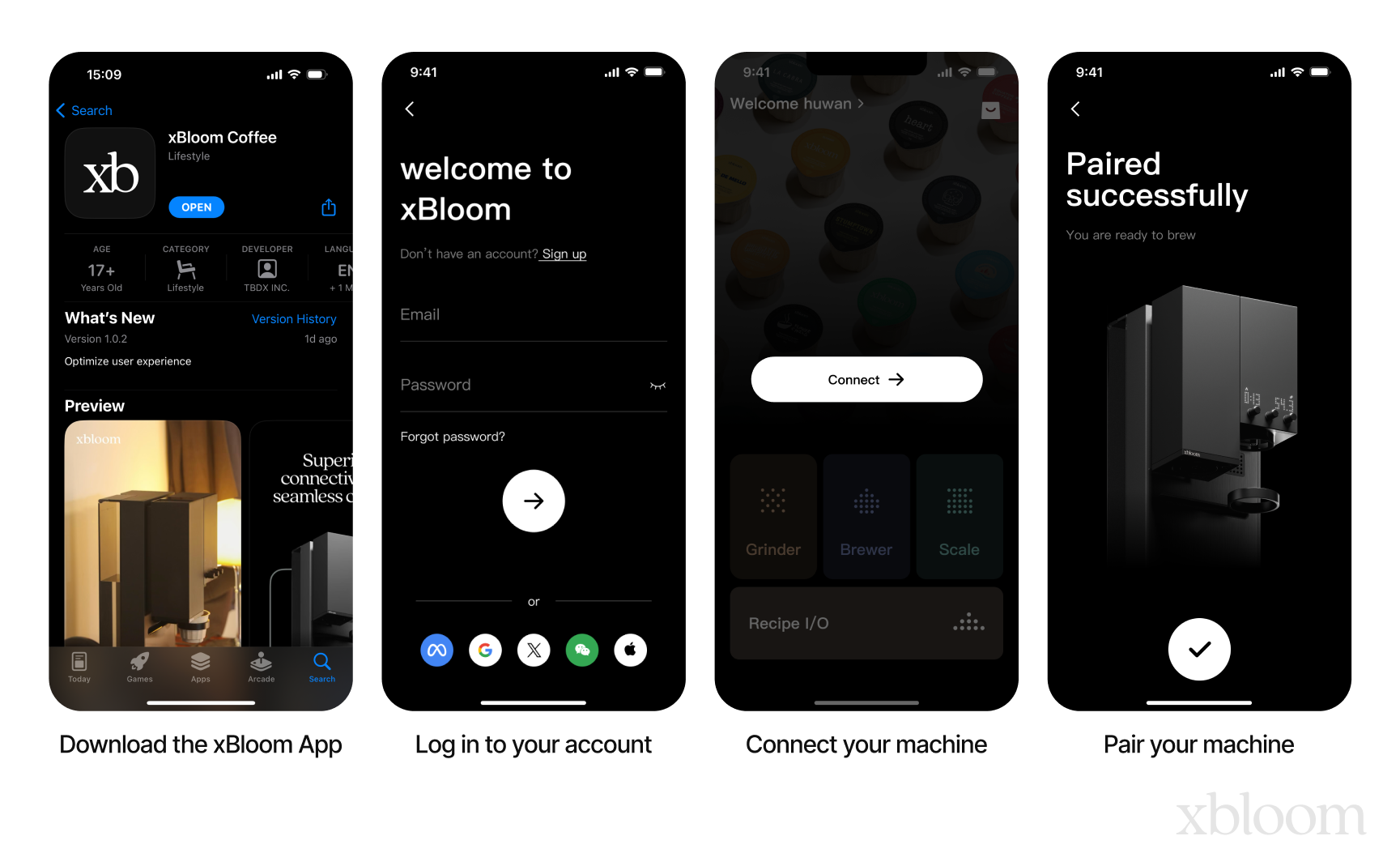

1.5.2 Bluetooth Connection
- Download the xBloom App by searching for "xBloom Coffee" in the Apple App Store or Google Play Store.
- Register or log in to your account as directed by the App, and start your coffee journey.
- Ensure your phone's Bluetooth is turned on, and tap "Connect →" on the app's homepage. The app will automatically detect nearby machines and display a list.
- Locate and connect to your machine. The machine name is composed of "XBLOOM" followed by the last six digits of the machine's serial number.
- Once successfully linked, the machine LED display will read "PAIRED," and the Bluetooth Connected 🔗 icon will light up. The app will show the device name with a green "Connected" status below, you may now access Settings mode via the app as well by clicking on the machine illustration.

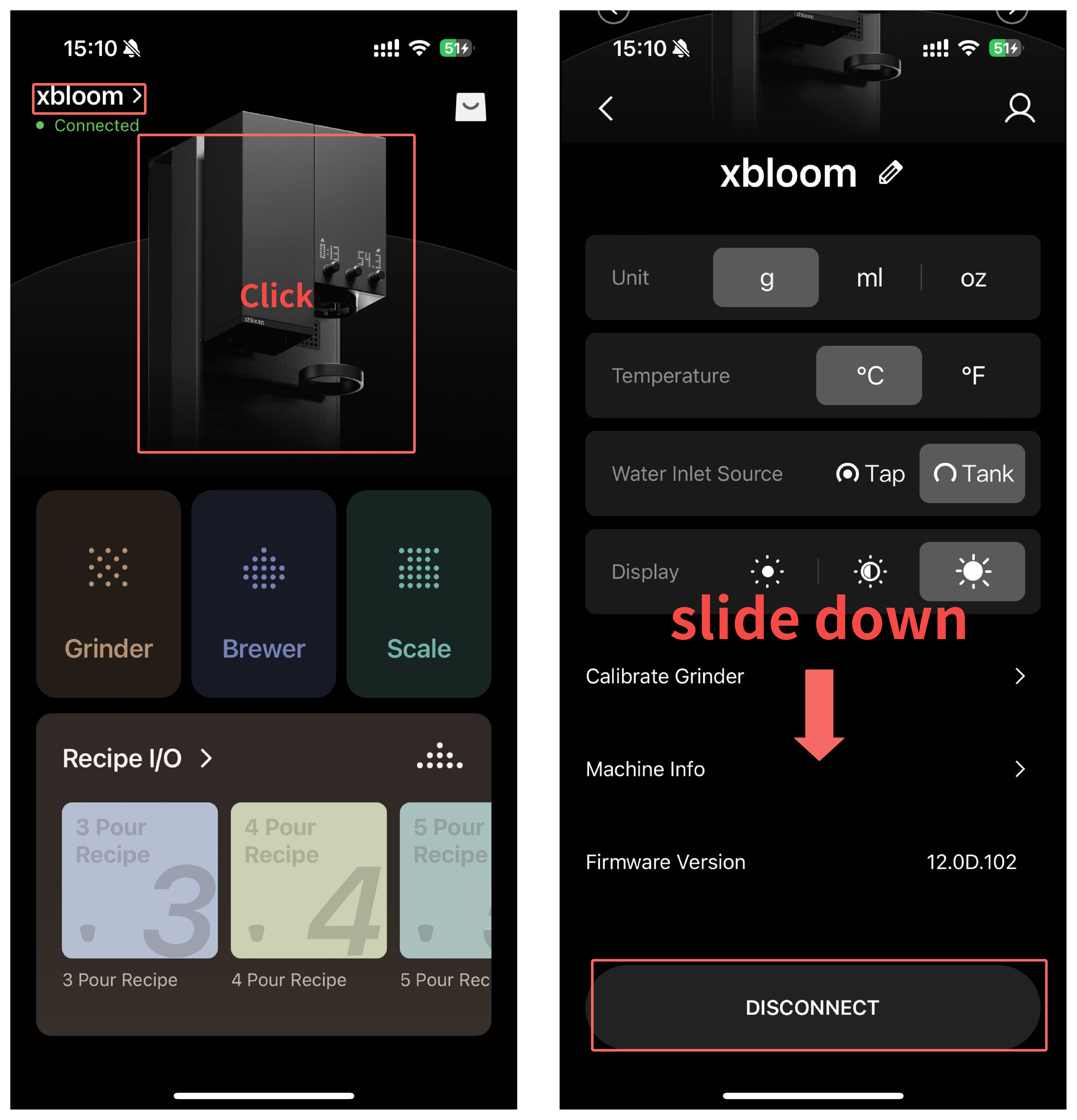

- How to disconnect the Bluetooth link:
-
Select [Disconnect] in the APP, and the user will disconnect the Bluetooth link actively.
-
Pairing the phone away from the machine, Bluetooth will be automatically disconnected.
-
Press the button on the right side of the machine three times to disconnect the current user and re-pair with a new user.
-

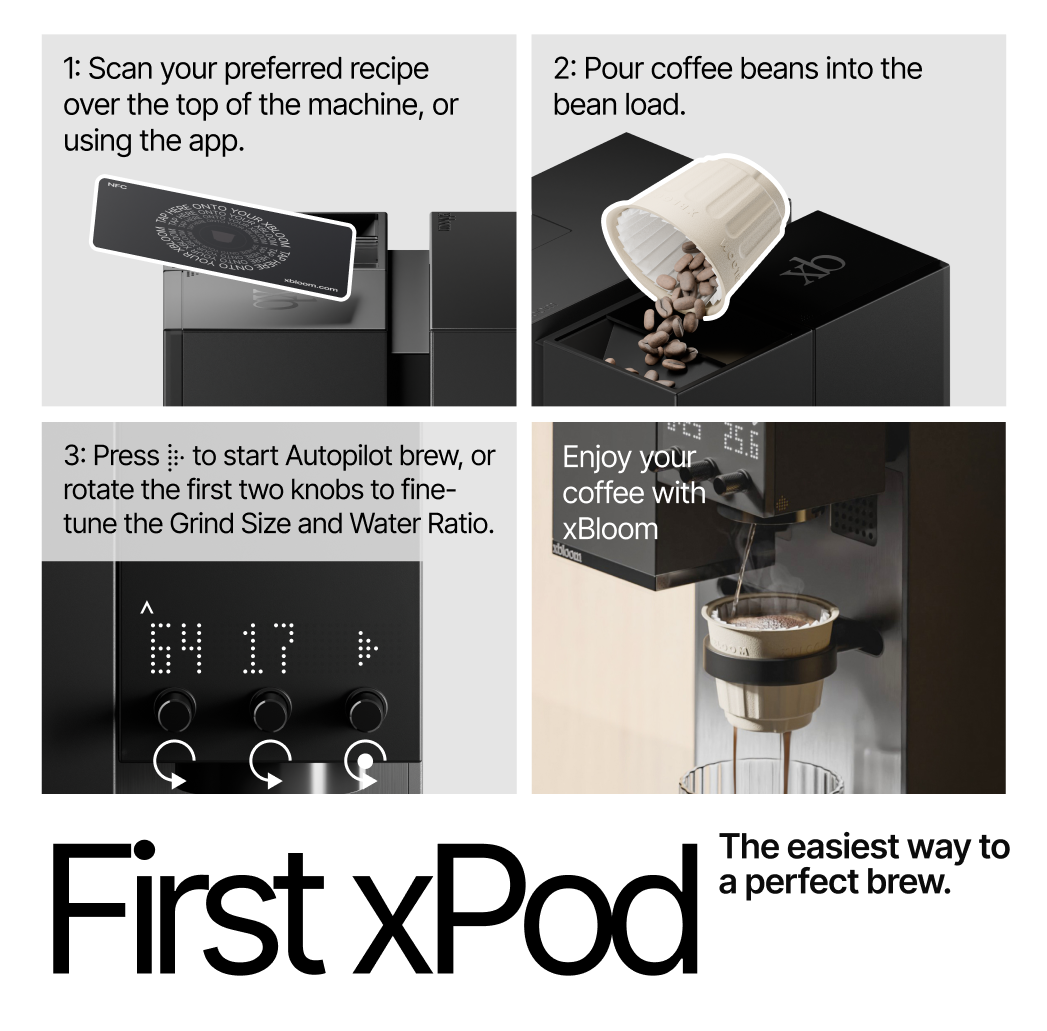

1.5.3 Brewing Your First xPod
The Autopilot mode offers a fresh coffee experience; just scan a recipe card and press ▶️ on the machine. The machine automatically sets grinding and brewing parameters as the roasters intended, letting you enjoy specialty coffee with ease and convenience.
Quick Guide:
-
Tap NFC recipe card on top of the machine, or send the recipe via the xBloom App.
-
Open the xPod lid and pour coffee beans into the grinder.
-
Place the empty xPod dripper on the xPod dock.
-
Place a carafe with a capacity of over 300ml and a height of less than 100mm (3.93 inches) underneath to collect the coffee.
-
Press the ▶️ right-side knob to start Autopilot mode.
-
When the ☕️ icon appears, enjoy your coffee.
💡Tip: Should you wish to adjust the brew profile on the go, you can manually tweak grind size and water-to-coffee ratio by turning the left-side and middle knobs.
